Thank you for purchasing the automobile OBD multi-function LCD monitor produced by our company. This product reads the driving data of the vehicle through the OBD2 platform of the car ECU computer, such as vehicle speed, rotation speed, fuel consumption, water temperature, voltage, etc., and instantly reads the driving information under the condition that the wide field of view does not shift during the car driving, so as to prevent the driver from being Looking down at the instrument during driving affects safety, this product does not rewrite any data in the ECU.

The OBD general-purpose driving computer is equipped with a very powerful fault detection device. The system clearly displays the fault information in the form of text, and has the function of eliminating the fault, and reading the whole vehicle data flow information display, and so on.

It adopts the latest integrated circuit design with stable performance, beautiful appearance, more convenient and safe installation method, installation and adjustment test can be completed in 3 minutes.



System settings

Time zone and current time: set the time zone of the current area

Vehicle speed unit: kilometers in Km/h, miles in MPH

Temperature unit: Celsius ℃, Fahrenheit ℉

Fuel consumption unit: international metric system L/100KM, American system MPG, British system MPG

Length unit:  KM,Mile



Note: Some cars cannot be used in OBD2 mode,that are recommended to be used in GPS mode. GPS mode is suitable for all cars



Applicable models in OBD2 mode:

The scope of application of OBD2 models: most of the OBD2 agreement gasoline vehicles produced in the United States after 2004, and most of the OBD2 agreement gasoline vehicles produced in other regions after 2008

OBD2 mode is not applicable to the following common models:

▲ OBD 2 models that cannot be used in the U.S. series: Dodge, JEEP, Sail, Chrysler, and models produced before 2004 and 2004

▲All French and Italian models of OBD2 cannot be used: such as: Fiat, Maserati, Lamborghini, DS, logo, Citroen, Renault, Simca, Amirka, etc.

▲ OBD 2 Japanese models that cannot be used: Suzuki, Mazda 3/6, Infiniti (QX50 q50 q501), 2013 Toyota avanza, Lexus (is250, ex250, ES300H) Honda (jazz, CRV) and cars produced before 2008.

▲Some Korean Kia and Hyundai models cannot use OBD models (2013 Hyundai Sonata, 2017 Kia Soul PS, etc.)

It is recommended to use the GPS mode for hybrid gasoline-electric vehicles, diesel vehicles, pickup trucks, RVs, and modified car computers.

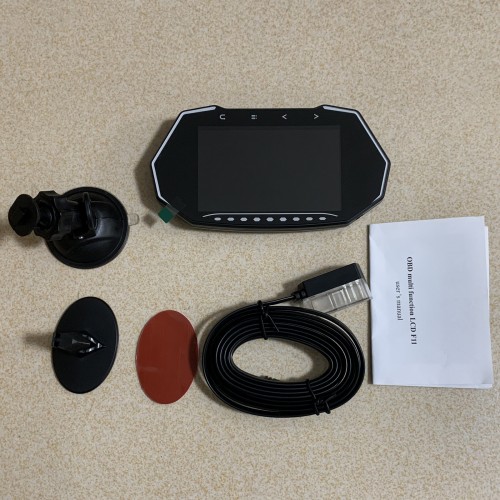

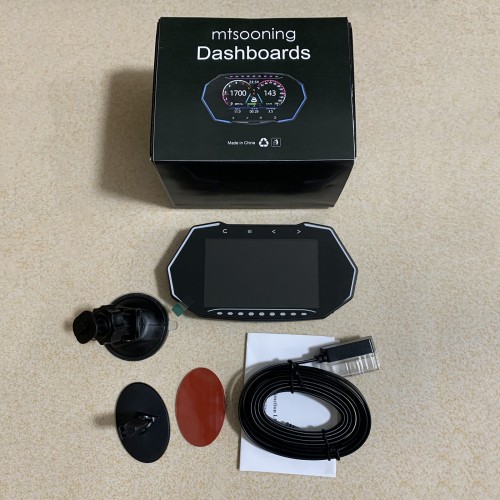

Packing:

1*Hud

1*OBD Cable

1*Suction cup holder

1*Manual

1*Non-slip mat
